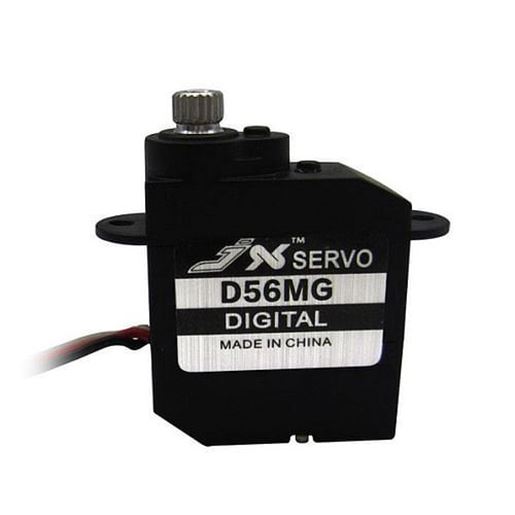

Picture of JX Servo D56MG 5.6g Coreless LV Low Voltage DS/MG Metal Gear Servo 0.89kg 0.10sec

JX Servo D56MG 5.6g Coreless LV Low Voltage DS/MG Metal Gear Servo 0.89kg 0.10sec

JX Servo D56MG 5.6g Coreless LV Low Voltage DS/MG Metal Gear Servo 0.89kg 0.10sec
Be the first to review this product
SKU: C122-1034036
Free shipping
$22.84
Shares
facebook sharing button Share
twitter sharing button Tweet
email sharing button Email
sharethis sharing button Share
JX Servo D56MG 5.6g Coreless LV Low Voltage DS/MG Metal Gear Servo 0.89kg 0.10sec



Weight(g)    5.6
A(mm) 27
B(mm) 20
C(mm) 24
D(mm) 8.2
E(mm) 28
F(mm)                       16










Description:
Brand:JX Servo
Item:D56MG Servo (low voltage version)
Weight: 5.6g
Dimension: 19.8x8.2x21.2mm
Stall torque: 0.58kg/cm (3.7V),0.7kg/cm (4.2V),0.89kg/cm 5.5V)
Operating speed: 0.13sec/60degree(3.7v),0.12sec/60degree(4.2V),0.1sec/60degree(5.5V)
Operating voltage: 3.7~5.5V DC
Frequence: 1520μs / 330hz
Servo lead: 150mm length
Servo plug: JR (Fits JR and for Futaba)

Features:
The JX D56MG servo is great for small gliders and DLGs  or just about any other mini airplane using single cell LiPoly batteries (3.7V) and where the ruggedness of a metal gear train is required.
The coreless motor provides excellent holding power and precision at a great price.

Package Included:
1 x JX Servo D56MG 5.6g Coreless LV Low Voltage DS/MG Metal Gear Servo 0.89kg 0.10sec
,
